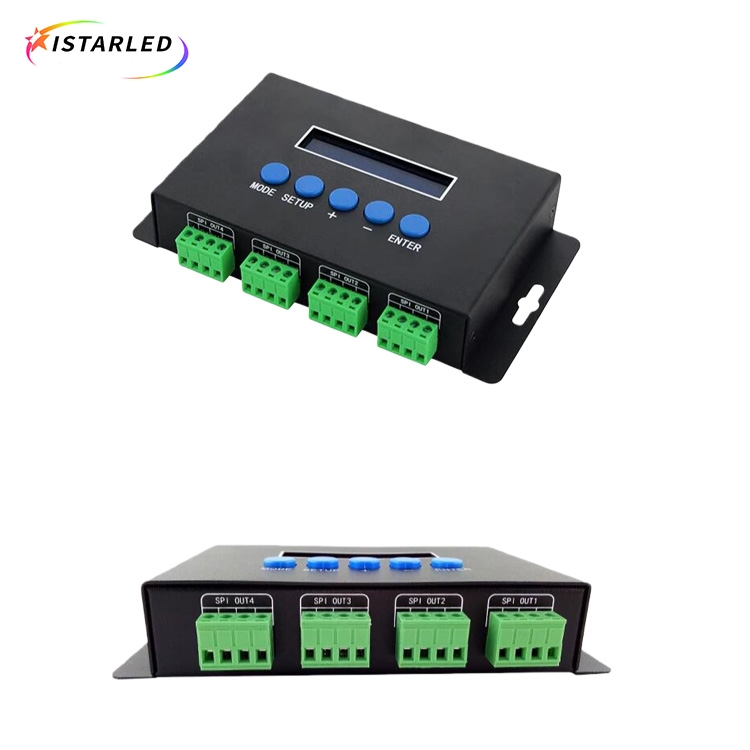

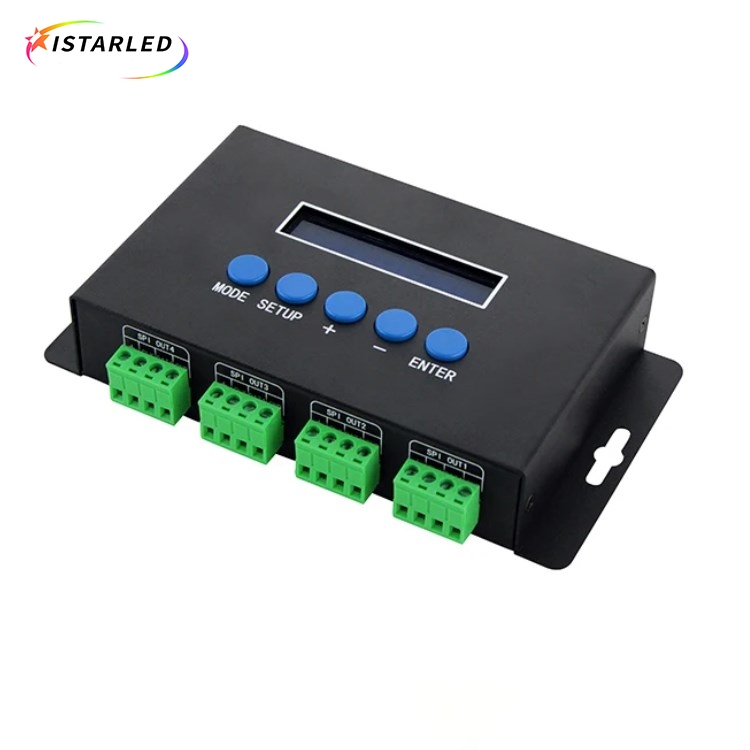

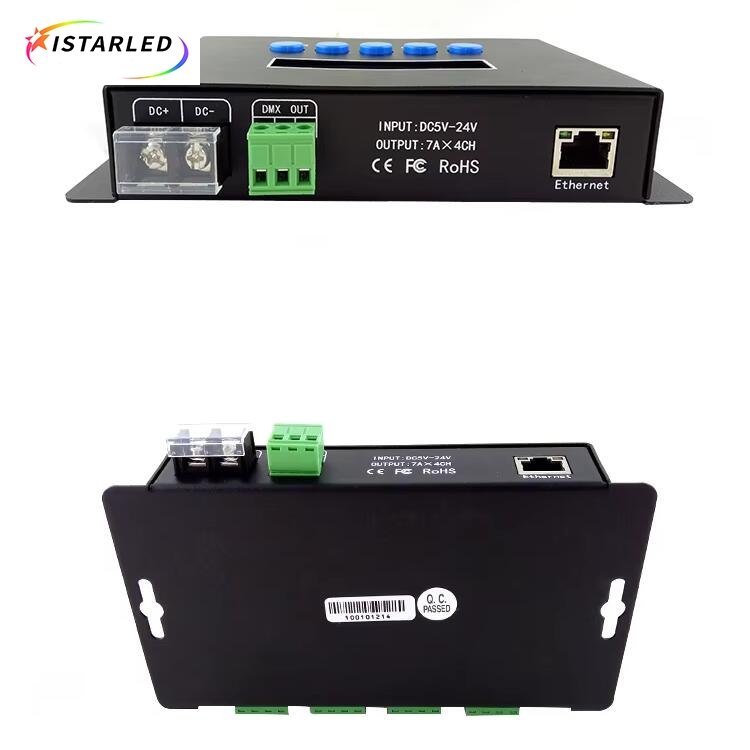

Ethernet DMX SPI RGB Pixel led controller

Part No:IL-BC204

Features:

1. With LCD display and built-in WEB SERVER setting interface, easy operation.

2. Support Ethernet DMX protocol ArtNet, sACN(E1.31)(only V2 versions), can be expanded to other protocols.

3. Multi SPI (TTL) signal output.

4. Output DMX512 signal at the same time, convenient for the connection of different types led lamp.

5. Support various LED driving IC,flexible control.

6. Support online firmware upgrade.

7. Adopt DIP plug-in design for the easily-worn parts, Users can repair the damage caused by wrong wiring or short circuit.

8. Built-in test mode, using a network interface with indicator light, work status is clear when at a glance.

What's more

The Ethernet-SPI/DMX pixel light controller is dedicated to converting the Ethernet signal into SPI pixel signal, which is designed for large project with high-density pixel light, such as matrix panel lights, construction's contour lamp, etc. Besides converting Ethernet-based control protocols into various LED driving IC signal, it also outputs DMX512 signal at the same time, convenient for the connection of different types of led lamp, and to achieve the unified control of all kinds of led lamp in the same project.

Wire diagram with leds:
