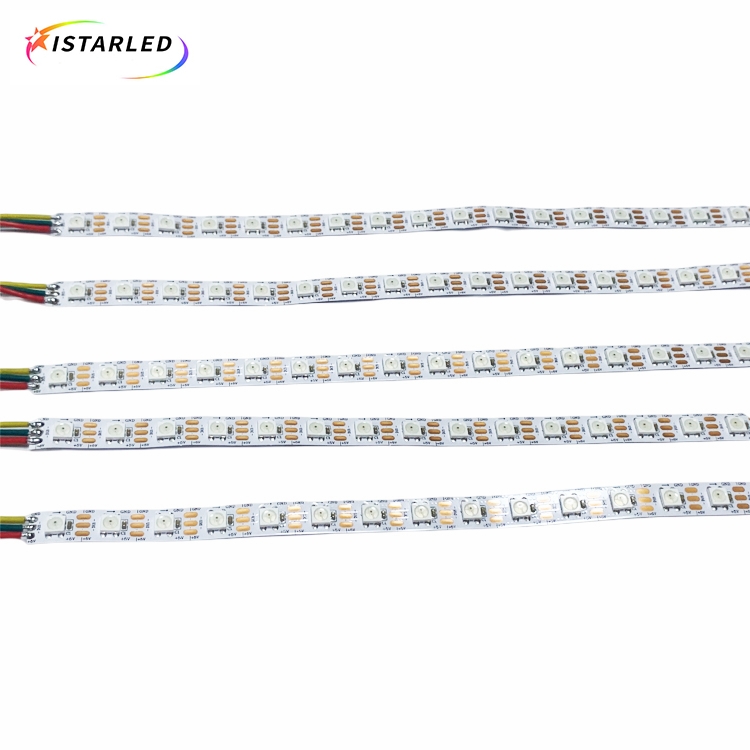

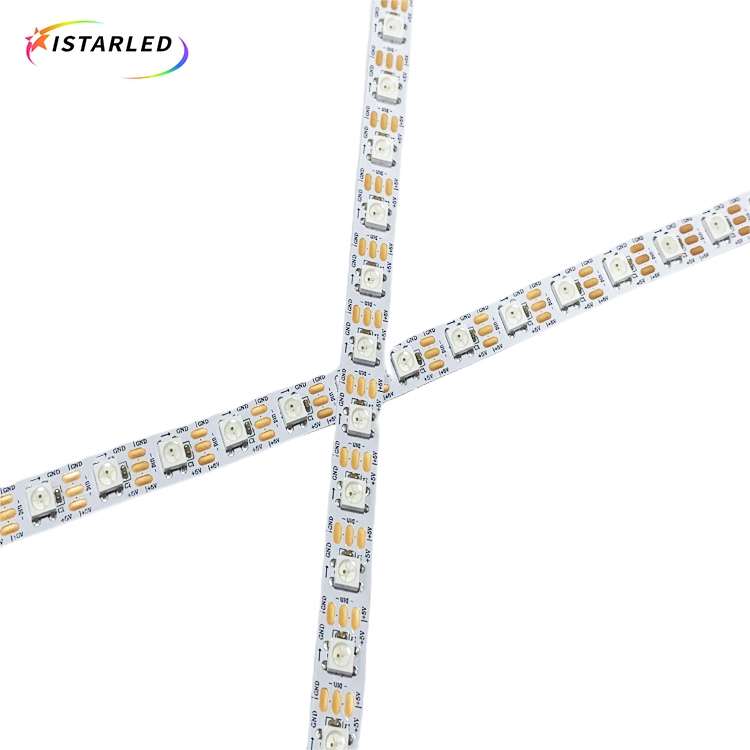

DC5V SK6812 SMD5050 RGB 74LED 74Pixels Addressable Pixel LED Strip

Part No:IL-S10074SK6812

Features:

1.DC5v 14.4W/m

2.white and black pcb

3.SK6812 IC Chip built-in SMD5050 RGB

4.LED wavelengths: 630nm / 530nm / 475nm

5.60led sk6812/ws2812b 5050 rgb per meter

6.10mm pcb width,pitch distance is 13.5 mm

7.normal is 2 oz copper,also can do customer 3oz or 4oz copper pcb

What's more

Those pixel strip are 74 leds rgb per meter, each led is with sk6812/ws2812b IC chip built-in SMD5050 RGB ,so they are fully addressable.Those addressable pixel led strip is with 10mm pcb width,if do silicone tube for waterproof IP65, the width will be 12mm.And we have white and black pcb for you to choose.Normal we say it is 5v ,each led is 12MA per channel,normal is only about 0.18w per led, so 74leds with 14W.

And those strip is flexible pcb with 74 solder pads for each leds, that is, you can cut single led to match for your projects.Normal we do is 5m per roll, and 5m with 3Pin JST SM female and male connectors.Female connectors with input, male connectors with output.Of course, we also can do customer length per roll and connectors,such as molex connectors,waterproof connectors.Each roll is with 2 extra power cable(this strip is dc5v to input power,so please don't use higher than 6V or you can destroy the entire strip.

Those pixel addressable led strip is only 3 solder pads on the PCB,that is,5V+,DATA,GND,which is mix Data and clk into DATA,so only one data line,the advantage of one data is that it can transfer longer signal,such as first leds to controller can reach 15-20m,if over this,you need to use signal amplifier.
