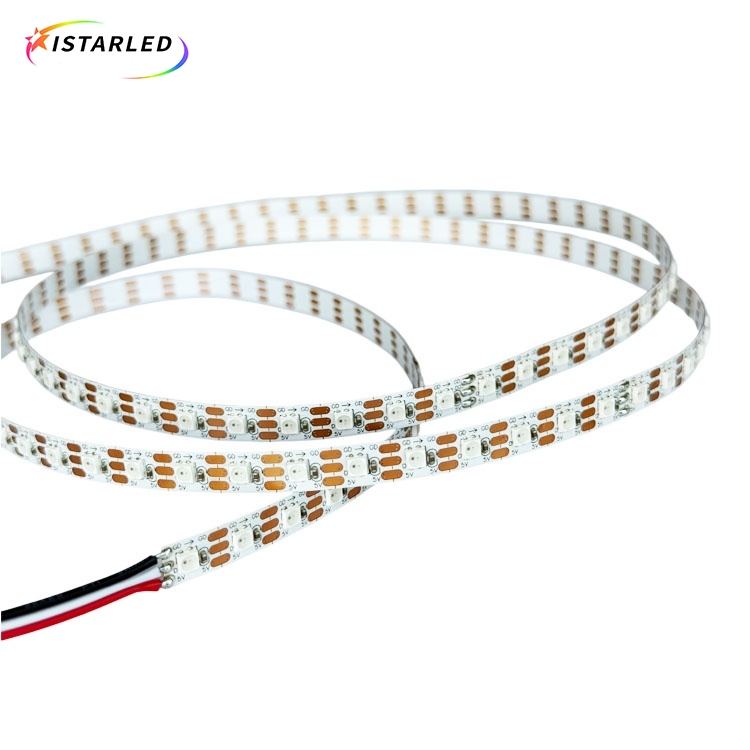

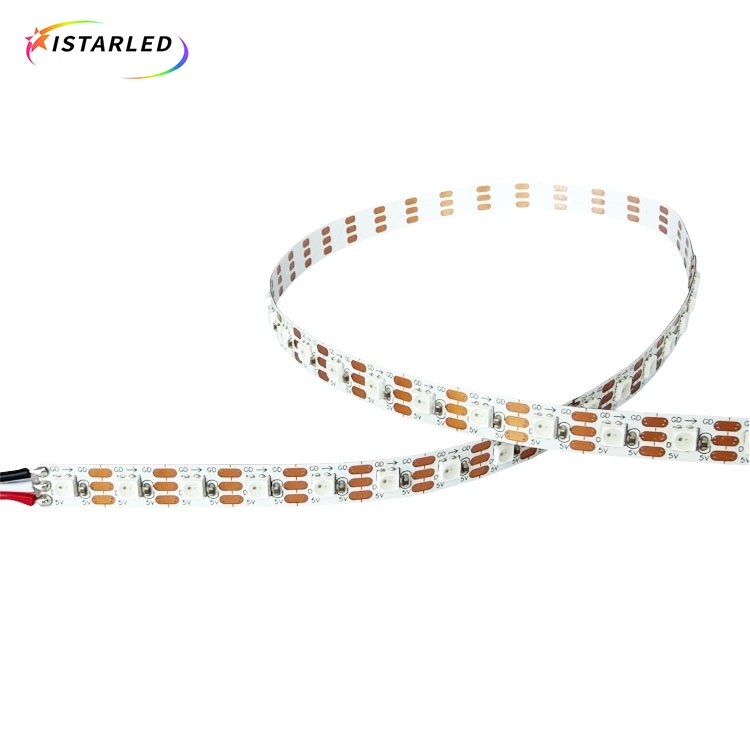

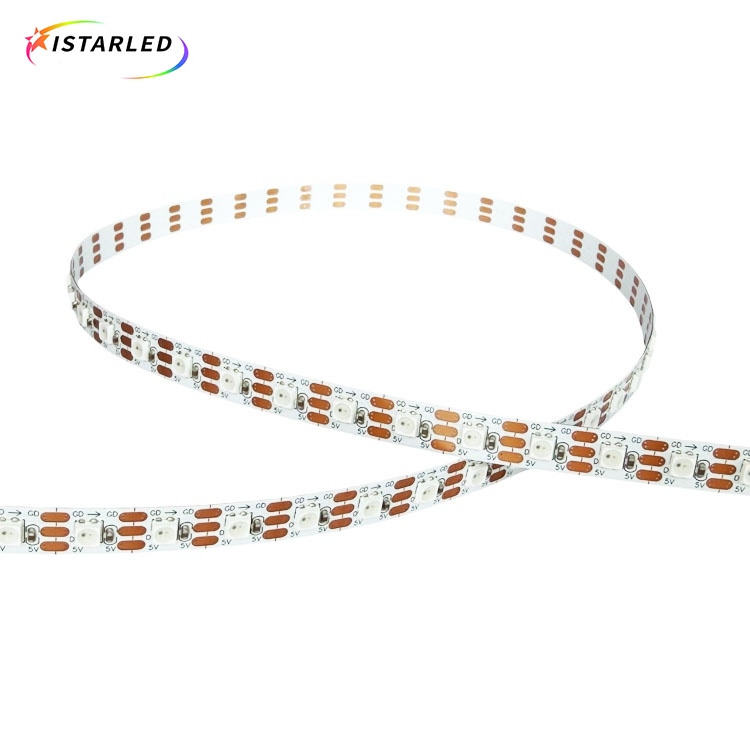

5V SK6812 MINI 3535 RGB 96LEDS 96Pixels Addressable LED Strip

Part No:IL-S10060SK6812MINI

Features:

1.DC5v 18W/m

2.white and black pcb

3.SK6812 IC Chip built-in SMD3535 RGB

4.LED wavelengths: 615-625nm / 520-530nm / 465-475nm

5.96led sk6812/ws2812b 3535 rgb per meter

6.8mm pcb width,pitch distance is 10.42 mm

7.normal is 3 oz copper,also can do customer 4oz copper pcb

What's more

Those pixel strip are 96 leds rgb per meter, each led is with sk6812/ws2812b IC chip built-in SMD3535RGB ,so they are fully addressable.Those addressable pixel led strip is with 8mm pcb width,if do silicone tube for waterproof IP65, the width will be 10mm.And we have white and black pcb for you to choose.Normal we say it is 5v ,each led is 0.18w max, so 96leds with 18W.

And those strip is flexible pcb with 96 solder pads for each leds, that is, you can cut single led to match for your projects.Normal we do is 5m per roll, and 5m with 3Pin JST SM female and male connectors.Female connectors with input, male connectors with output.Of course, we also can do customer length per roll and connectors,such as molex connectors,waterproof connectors.Each roll is with 2 extra power cable(this strip is dc5v to input power,so please don't use higher than 6V or you can destroy the entire strip.

Those pixel addressable led strip is only 3 solder pads on the PCB,that is,5V+,DATA,GND,which is mix Data and clk into DATA,so only one data line,the advantage of one data is that it can transfer longer signal,such as first leds to controller can reach 15-20m,if over this,you need to use signal amplifier.
