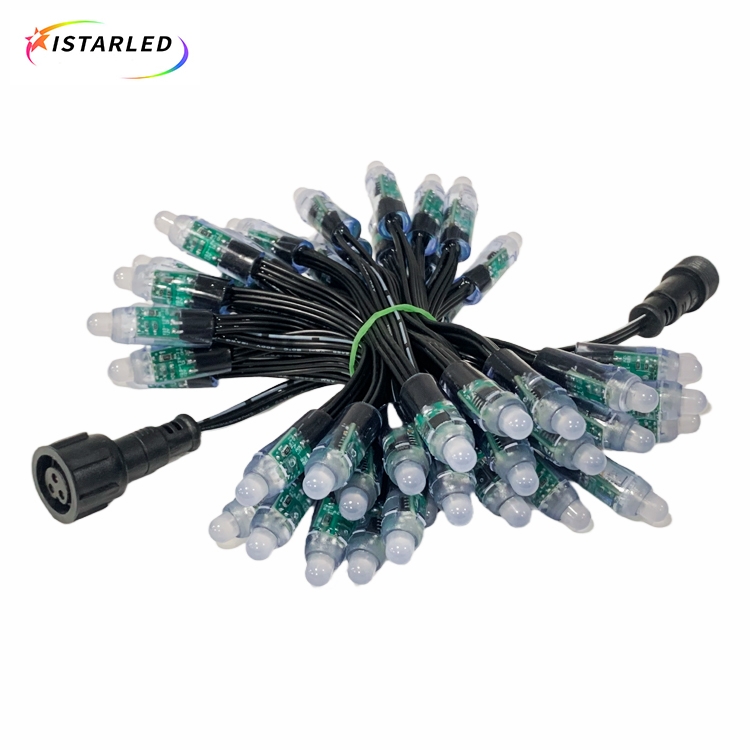

12MM 12V RGBW SM16704 Pixel led string light

Part No:IL-P12V12RGBW

Features:

1.12mm diameter, 38mm deep

2.DC12V 0.4W/pcs(LED on full white)

3.50pcs/chain or customer request

4.WS2814/SM16704 IC chip

5.SPI signal with RGBW 4Channels

6.Each pcs with F8 diffused rgb pixel, also can do clear F8 led lamp.

7.3Pin color cable with 18AWG

8.Pitch distance with 10cm

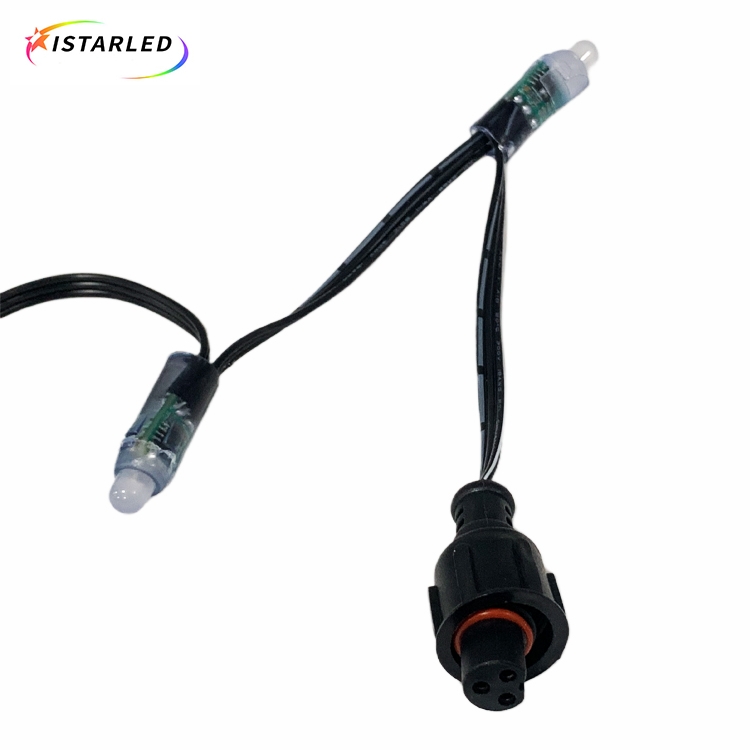

9.Connectors :JST SM connector,IP67 clear connector,IP68 X connector

What's more

After 12mm rgb pixel 3 channels,clients also want RGBW 4channels,so we developed DC12V WS281/SM16704 RGBW Pixel led string light.

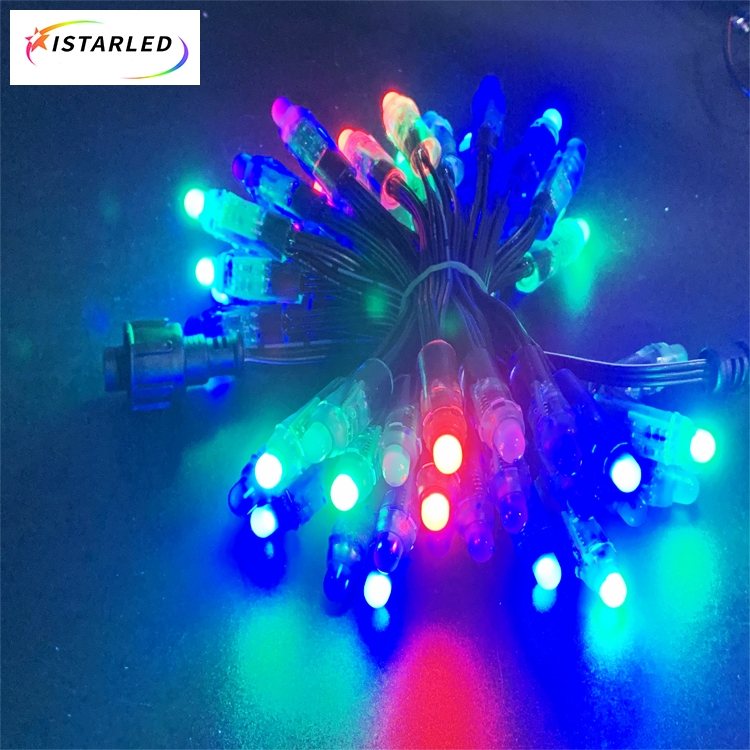

12mm rgbw pixels are addressable controllable led lights, which you can program any color,or animations.Each rgb pixel is with silicone tube then glue inside, so those pixel dots are waterproof.They are typically used to make outdoor signs, but with the development of time, people also like to use those dot pixel to make Christmas tree,bridge decoration,curve...

Those 12mm rgbw dot pixels are soldered by a 3Pin cable-12v+,DAT,GND.Those pixels are with WS2814/SM16704 signal,data is transfer to pixels by pixels.And they can be connected together by strings. The pixels use 8mm (F8) diffused rgb leds,with a 120 degree beam angle.The total max brightness of all leds is about 1600mcd.

Those 12MM RGBW 4channels Christmas pixel leds solder by the strand, each strand have 50 pixels in series. Each strand has female and male JST SM 3pin connectors so that you can connect them with multiple strands in a sow,as many as you like,just give enough power for them. And each strand we also  have extra power cable for you to each charging power. Normal each strands you need to connect power once.

Of course, you can also cut pixels per strand you wish,just notice to solder them with right wies.

12mm RGBW SM16704 Pixel string/chain light is 4 Channels,for White can do 3000K,4000K,6000K.Normal is 3000K.

You can drive these dot pixels with an Arduino,RF remote controller,or sd card controller such as K-1000c,K-8000C....You also can control them with madrix, just need dmx decoders or dmx controller with decoder function.
