16 Bits UCS8904 96LEDS RGBW 24V pixel led strip

PN: IL-S10096UCS2904/UCS8904

Features:

1.DC24V,28W/m

2.96PCS SMD5050 RGBW

3. RGBW can do 2700K,3000K,4000K and 6500K

4. 16pcs UCS2904 IC /m for 8 bits or 16pcs UCS8904 IC/m for 16bits

5. 12mm pcb width with 3OZ pcb

What's more

1. This digital led strip is dc24v 96leds RGBW with 16pcs UCS2904/UCS8904, which is external IC chip.

2.The UCS8904/UCS2904 96led RGBW digital led strips is powered by DC24V, each meter with 28W/m.

3.The width of UCS8904/2904 96leds RGBW strip is 12mm , the copper with 3OZ high quality PCB.

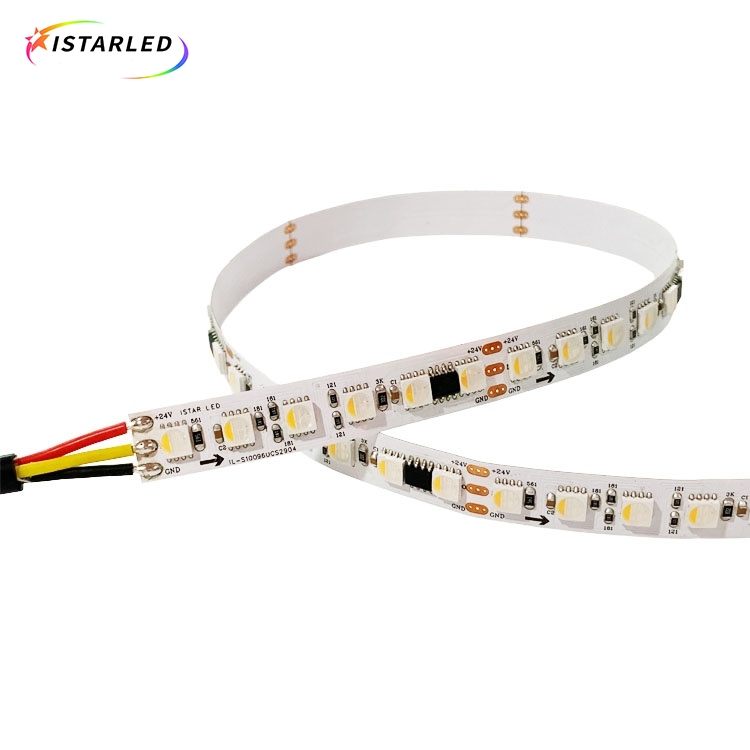

4. The strip is with 96LED RGBW SMD5050, 16pcs UCS2904 IC chips(8bits dimming), also can do UCS8904 IC for 16bits dimming,that is,one UCS8904/UCS2904 IC chip control 6leds smd5050 rgbw.

5. UCS2904/UCS8904 96leds digital led strips is SPI signal with 4Channels, each meter with 64channels.

6. 96leds rgbw ucs8904 24v strips for the white can do 1800K/2700K/3000K/4000K and 6500K, normal is 3000K and 6500K.

7.UCS8904/UCS2904 96LEDS RGBW 24V strips can do non-waterproof IP20 with 3M tape, also can do IP65 silicone tube/drop glue,and IP67 silicone tube with full glue inside and IP68 with neon strips such as 12x25mm

8.The difference between UCS2904 and UCS8904 are as below:

 *UCS8904 RGBW output port PWM control can be achieved is 65536 grey level each port adjustment,UCS2904 is 256 grey level

 *UCS8904 is port scanning frequency 4K Hz/s,UCS2904 is only 1.8K Hz/s

 *UCS8904 have chip VDD built-in 5v voltage regulator tube, output port withstand voltage 28V, UCS2904 is withstand voltage for 26V.

 *UCS8904 is with 18MA/channel, UCS2904 is with 17MA/channel
