35mm 9leds rgb amusement led pixel light

Part No:IL-P359V24-R

Features:

1.Diameter 35mm

2.9pcs smd5050 RGB LED

3.UCS1903/UCS2903 IC chip

4.dc24v,2.16W

5.Install hole:35mm/19mm/14mm

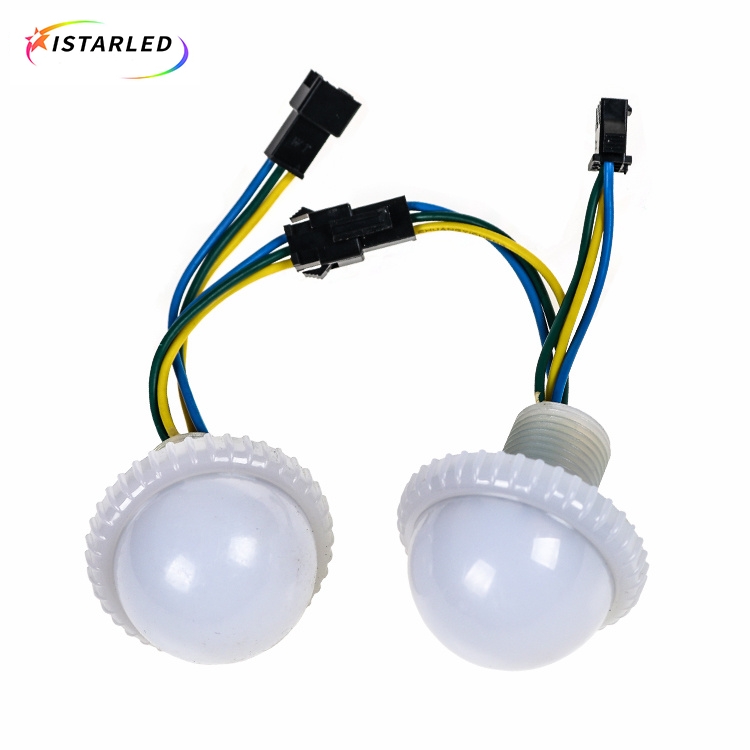

6.3Pin JST SM connectors with 8cm(indoor use)

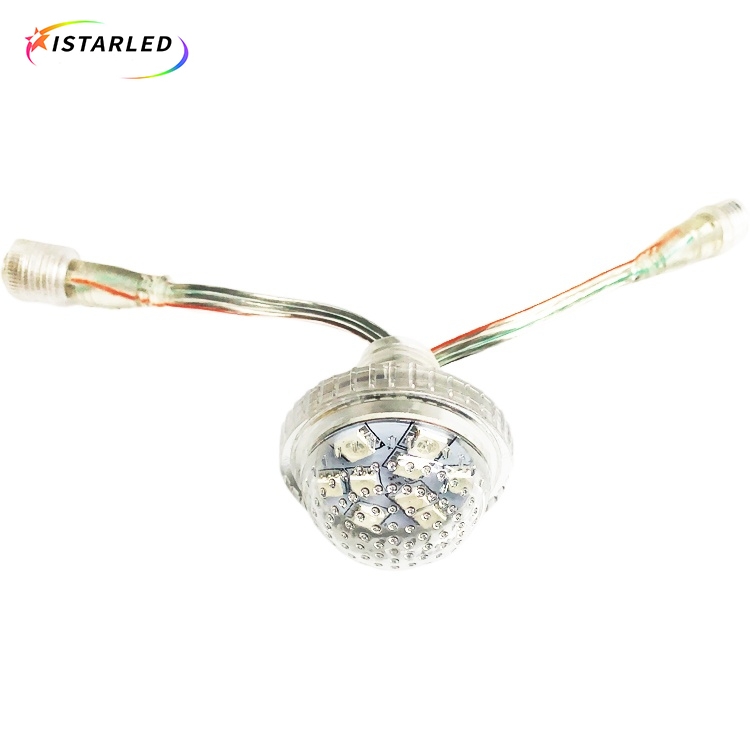

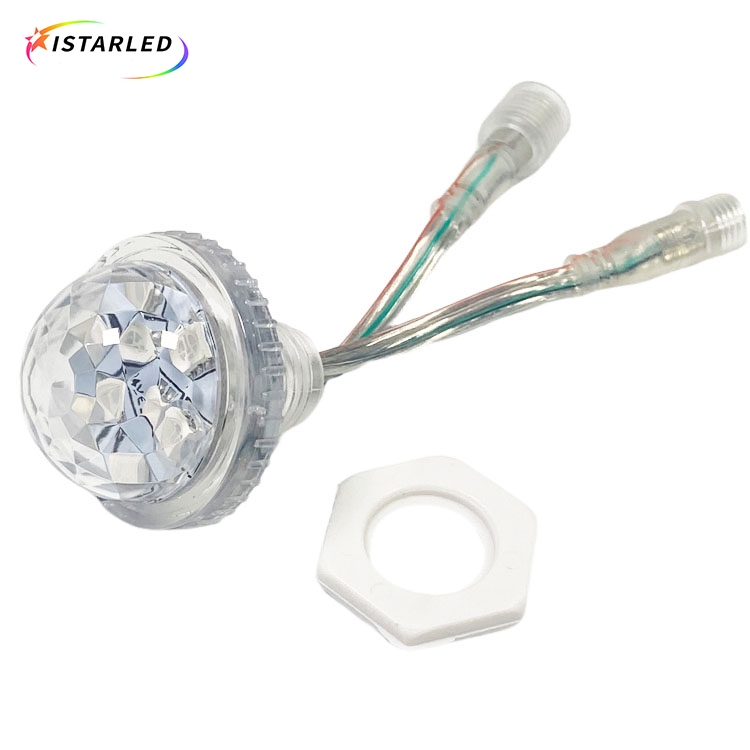

7.3Pin waterproof female and male connectors(outdoor use)

8.Cover: clear cound cover/milky cover/flat cover/milky flat cover/raindrop cover

What's more

This 35mm rgb 9pixels led is made by 9pcs smd5050 rgb led with one pcs ucs1903 ic chip,drived by 12/24v, for the backside install hole we can do 35mm hole,19mm hole and 14mm hole. The glue inside from backside, so leds are fully waterproof.Normal it is with 3Pin JST SM female and male connectors with 8cm for each pixels,so you can plug them together as the quantity you need, just remember to recharge power every 20pcs. Also we can provide 20pcs with one pcs have extra power cable. And if you want to use them in outside, please tell us before order, then we can do them with waterproof plugs.

The 35mm 9pixels amusement led is SPI signal,you can use controller to make color changing, normal use sd card controller,such as k-1000c,k-4000,k-8000c, you also can work them with dmx, but remember to use dmx decoders or the dmx controller have multi-function with dmx to spi.
